High tensile marine grade Security Screen Mesh material is high strength AISI316 stainless steel wire with tolerance (+ – 0 01mm) and tensile strength greater than 900Mpa

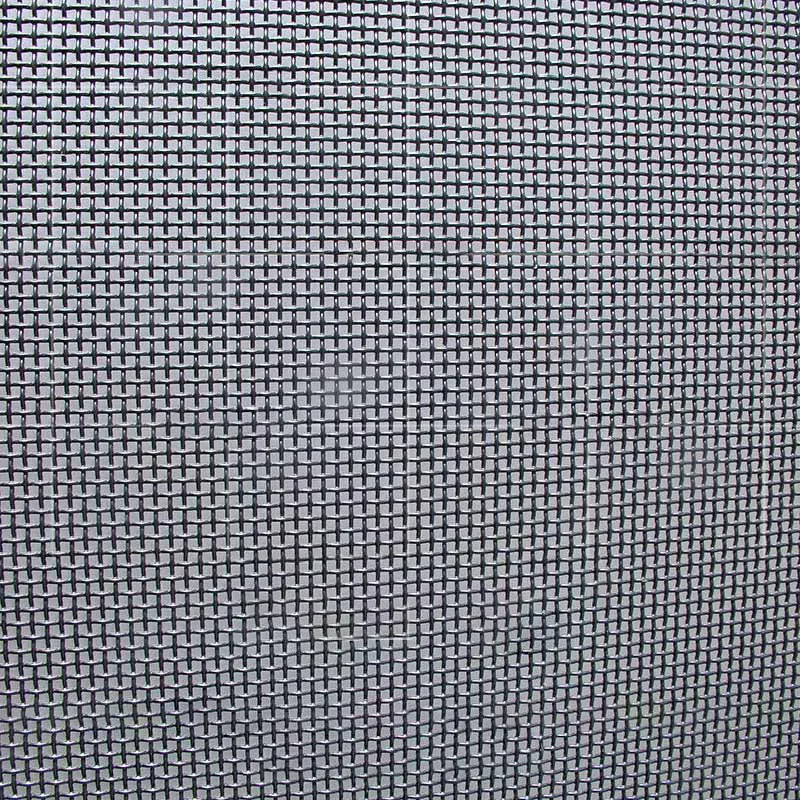

High tensile marine grade Security Screen Mesh material is high strength AISI316 stainless steel wire with tolerance (+/- 0.01mm) and tensile strength greater than 900Mpa (900N). The holes are square and the wires are very strong (not slipping), and the surface of the screen flattens as we weave the wires into the mesh.
Material: stainless steel wire, AISI 316, 304, steel wire
Color: black, gray (epoxy powder coating)
Surface: black powder coating / epoxy coating
Length: 2.0m to 2.4m, available on request
Filling: wooden pallets and boxes (provided with a fumigation certificate)
High tensile marine gradeSecurity Screen Mesh product features:
1. Safety: not easy to cut and destroy through AS5039-2008
2, private living: no one can peep into the room
3, beautiful: gorgeous surface
4, durable: more than 10 years warranty through AS2331.3.1-200
Parameter table for high tensile marine safety screen
|
Material |
Mesh Size |
Hole Size |
Sheet Size |
| General tensile 316 Marine grade stainless steel wire | 8mesh×1.2mm | 2.0mm |
Width×Length 750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm |
| 9mesh×1.0mm | 1.8mm | ||
| 10mesh×0.8mm | 1.8mm | ||
| 10mesh×0.9mm | 1.6mm | ||
| 10mesh×1.0mm | 1.5mm | ||
| 11mesh×0.8mm | 1.5mm | ||
| 11mesh×0.9mm | 1.4mm | ||
| 12mesh×0.7mm | 1.4mm | ||
| 12mesh×0.8mm | 1.3mm | ||
| 12mesh×0.9mm | 1.2mm | ||
| 14mesh×0.5mm | 1.3mm | ||
| 14mesh×0.55mm | 1.2mm | ||
| 14mesh×0.6mm | 1.2mm | ||
| 18mesh×0.32mm | 1.0mm | ||
| High tensile 316 Marine grade stainless steel wire | 8mesh×1.2mm | 2.0mm |
Width×Length 750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm |
| 8mesh×1.3mm | 1.9mm | ||
| 9mesh×0.9mm | 1.9mm | ||
| 9mesh×1.0mm | 1.8mm | ||
| 10mesh×0.9mm | 1.6mm | ||
| 10mesh×1.0mm | 1.5mm | ||
| 11mesh×0.8mm | 1.5mm | ||
| 11mesh×0.9mm | 1.4mm | ||
|
1.Sheet Size:Can be customized 2.Coating Color:Black/Gray/White 3.Packing:50 pcs per polywood box |
|||

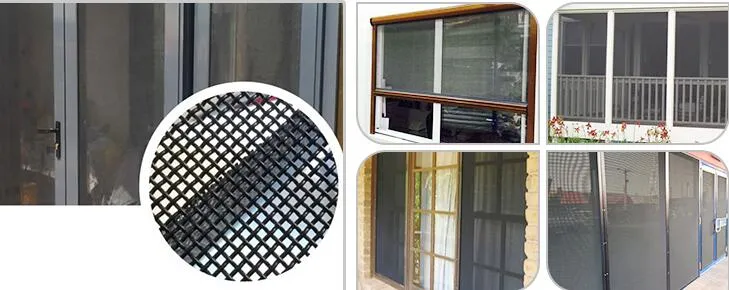

Applications
International certificate
Manufacturer strength
The powerful High tensile marine grade Security Screen Mesh manufacturer – Hebei maishi Wire Mesh Co., Ltd., our company has been operating the wire mesh industry since its ancestors, has a history of more than 30 years. With superb technology and first-class technology, it has continuously introduced advanced production equipment in recent years. It has dozens of heavy-duty, ultra-wide and universal ginning machines, forming a ginning mesh with professional production scale and large production capacity. production line.
