stainless steel security door

stainless steel security door

MAISHI Wire Mesh Manufacturing Group has been producing wire mesh for more than 30 years Safety wire mesh is our main product and has passed the Australian test our

First, maishi stainless steel security door description

MAISHI Wire Mesh Manufacturing Group has been producing wire mesh for more than 30 years. Safety wire mesh is our main product and has passed the Australian test. our

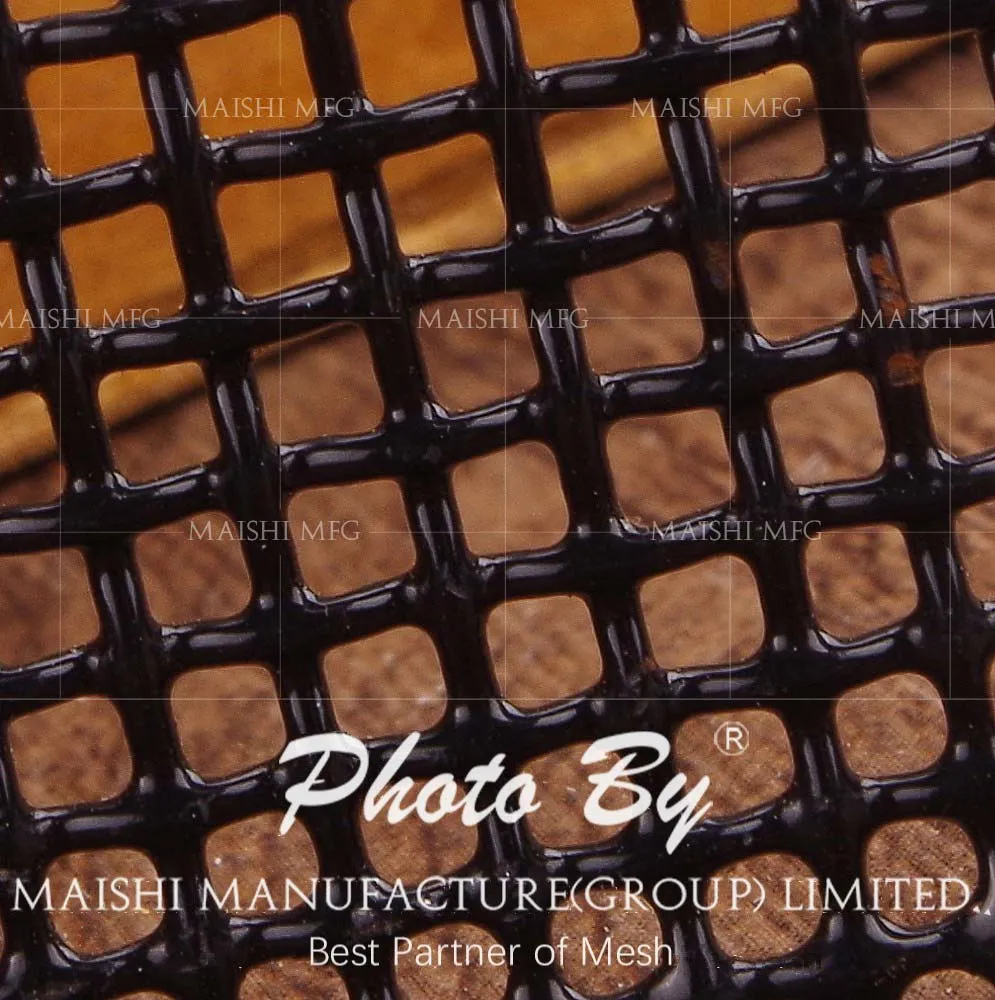

The stainless steel security door is made of high-strength AISI316 stainless steel wire with tolerances (+/- 0.01mm) and tensile strength greater than 900Mpa (900N).

The holes are square and the wires are very strong (not slipping), and the surface of the screen flattens as we weave the wires into the mesh.

Material: galvanized steel wire, low carbon steel wire, 201 stainless steel wire, 304 stainless steel wire, marine 316 stainless steel wire.

Wire diameter: 0.55, 0.6, 0.7, 0.8, 0.9

Surface: black powder coating / epoxy coating

Width: 0.7m to 1.5m, available on request

Second, the unique advantages of stainless steel security door maishi home

1 Safety: not easy to cut and destroy by AS5039-2008

2 private living: no one can peep into the room

3 beautiful: gorgeous surface

4 Durable: Over 10 years warranty through AS2331.3.1-2001

Third, stainless steel security door high standard

1) Knife and shear test (AS5039-2008)

2) Anti-Jemmy test (AS509-2008)

3) Tensile test (AS5039-2008)

4) Durable for more than 10 years (AS2331.31-2001)

5) 3006 hour salt spray test, 534 hour UV test

stainless steel security door

Fourth, stainless steel security door specification table

Recent Products

Our Security screen mesh are world-class quality products that help product personal safety and privacy.


stainless steel security door

9 mesh stainless steel …

The 9 mesh stainless steel wire mesh window screen is a high strength AISI 316 stainless steel wire with tolerances (+ – 0 01 mm) and tensile strength greater than 900 MPa (900 N)


stainless steel security door

10 mesh stainless steel…

The maishi stainless steel window security screen is made of high-strength stainless steel wire woven,…


stainless steel security door

0.9mm 316 marine grade …

The 0 9mm 316 marine grade stainless steel mesh for doors and windows is made of high-strength AISI3…

View More

stainless steel security door

TYPE

MESH COUNT

 APERTURE THREAD DIAMETER OPENING THICKNESS INK THROUGH VOLUME THEORETICALLY TENSILE STRENGTH


(mesh/inch)

 (micron) (micron) (%) (micron) (cm³/m²) TENSILE STRENGTH (N/CM)
6-400 15 1300 400 65 780-810 560 110
7-350 18 350 1067 55 585-598 389 110
8-300 20 970 300 58 550-580 406 100
10-250 25 700 250 49 508-518 355 85
12-140 30 685 140 68 273-275 189 65
12-150 30 696 150 67 270-274 180 50
12-250 30 610 250 53 495-505 305 85
15-250 38 467 250 49 489-501 213 83
16-120 40 515 120 65 225-230 147 62
16-140 40 461 140 58 230-238 139 65
16-150 40 485 150 58 282-292 164 65
16-200 40 403 200 44 329-341 151 70
16-250 40 356 250 34 420-425 145 85
18-150 45 410 150 53 255-275 138 50
20-80 50 399 80 69 132-142 92 36
20-100 50 380 100 62 165-172 105 50
20-150 50 358 150 50 252-257 126 55
21-80 55 378 80 68 125-140 125 36
21-150 55 330 150 46 260-280 123 55
24-80 60 343 80 65 132-136 86 42
24-100 60 316 100 57 188-195 109 49
24-120 60 303 120 51 230-240 104 51
24-150 60 273 150 42 249-255 100 60
28-80 70 80 262 58 130-138 79 40
28-100 70 100 243 50 165-174 85 45
30-120 75 213 120 41 235-245 102 52
32-64 80 236 64 60 105-110 68 31
32-80 80 237 80 55 120-130 110 40
32-100 80 212 100 46 145-155 69 48.5
34-100 85 198 100
