Maishi make security window screens according to customers’ request, but the main sizes are:
10mesh x 0.9mm — Pass all the Australia standard test, including Knife Shear Test
11mesh x 0.8mm — Pass all the Australia standard test, apart from Knife shear test AS5039 or AS5041
If you need other sizes, welcome to contact us.
|
Material |
Mesh Size x Wire Dia. |
Hole Size |
Sheet Size |
Quality standard |
|
High tensile 316 Marine grade stainless steel wire
Akzo Nobel powder coating
Color: black only |
10mesh×0.9mm |
1.6mm |
Width:
Length:
|
Passed all Australian standard and world wide standard related with security mesh screens |
|
316 Marine grade stainless steel wire
Akzo Nobel powder coating
Color: black only |
11mesh×0.8mm |
1.5mm |
Width:
Length:
|
Passed all Australian standard and world wide standard (except Knife Share Test) related with |

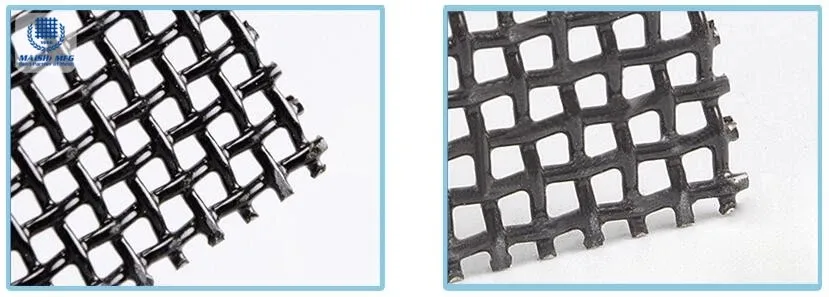

MAISHI security screens quality
– Sheets are flat (no any wave on the surface)
– Square and clear hole without burs
– Exact hole size and wire thickness
– No obvious tiger lines on the surface
– No color difference on the surface
– No sundries on the surface
– No folded wires on edges
– Tolerance of diagonal length is within +/-5mm
– Edge cutted along one wire

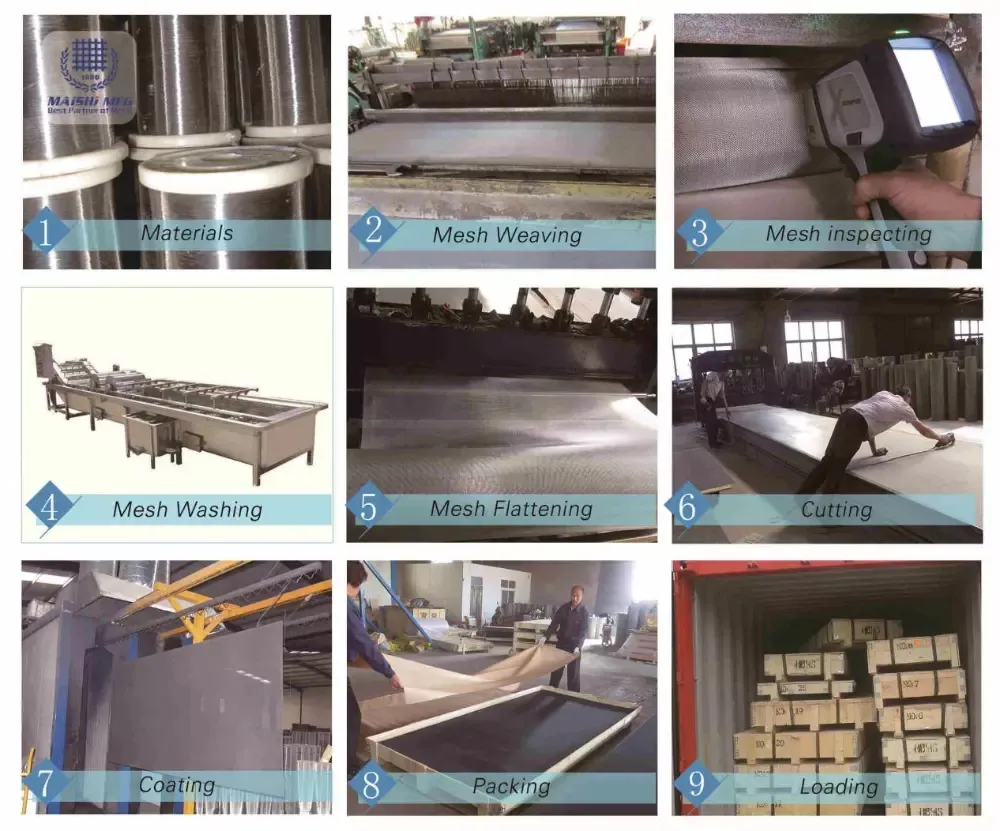

Quality Control
>> MAISHI control the quality from the origin. When the mesh wire arrive at our factory, we will check its chemical component, make sure the wire thickness is correct and even.
>> After the mesh is woven, we check the mesh surface, test the wire thickness and mesh hole size to make sure it is correct.
>> We clean the mesh thouroughly to make sure there is no dust, or dirty on the mesh surface, thus to make sure the powder is well attached to the mesh and no dirties attached under the powder.
>> Before packing, we check the mesh pieces one by one to make sure tgood quality meshes will be delivered.

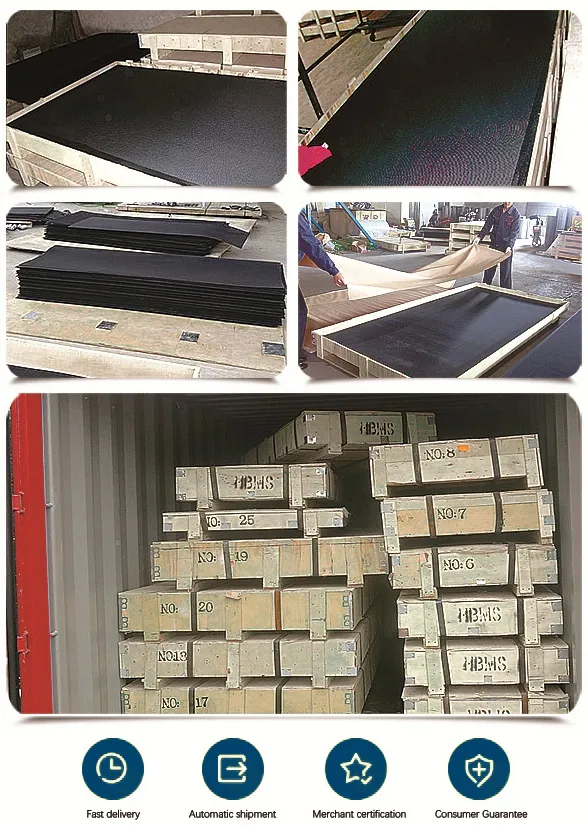

>> Then we carefully lift the mesh and separate each piece of the security mesh screen with waterproof paper. Thus to make sure the meshes will not be scratched by each other, and keep the mesh surface is smooth and beautiful.
>> After all is finished, we use the poly-wood case, which is not wooden, thus to make sure there is no potentional worm egg inside of the wood to harm the local environment. And we pack the case with steel belt, not nails. Thus to make sure the mesh will not be damaged by nails during transportation.

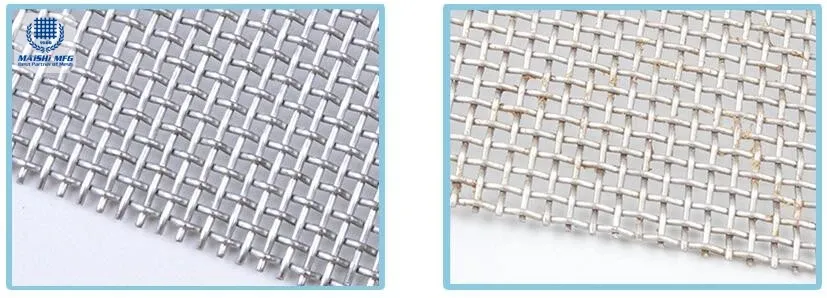

Material
For SS316 grade, MAISHI offer Nickel 10%-14% Cr 16%-18% mesh. And we test the mesh with XRF analyser, which could exactly test the chemical component. Thus to make sure real SS316 material is offered.
MAISHI is different from others. We offer only top quality meshes, and guarantee the quality.

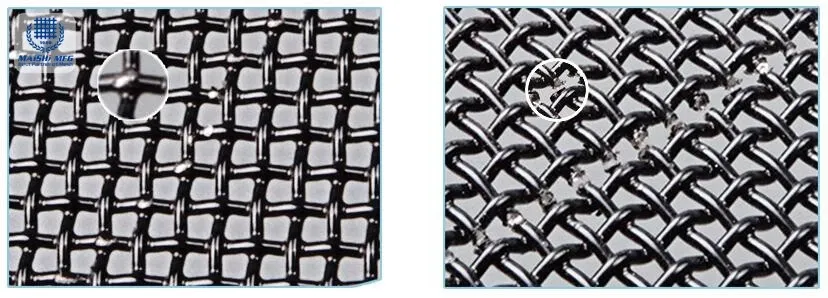

Tensile Strength
We use high tensile stainless steel wire, with more than 900Mpa (900N). The wire is more strong, and can not be easily cut off.
The function of the security screen is to protect your home from thieves and burglars, so choosing a mesh which will not be easily cut and broken is very important.
MAISHI never negotiate with the good quality, so in this way more and more customers choose to cooperate with us. Woking with us, you are rest assured of the good quality.

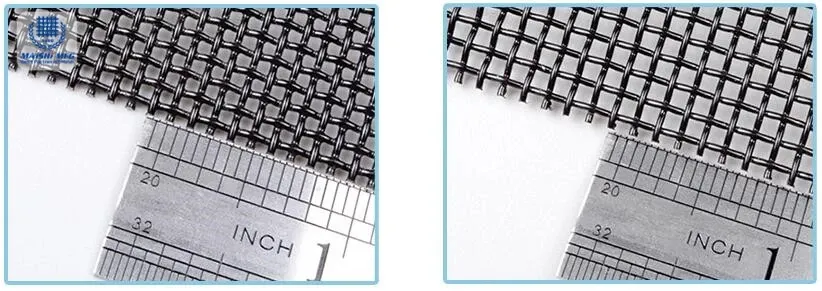

Mesh size
MAISHI offer Security wire mesh screenwith exact hole size and wire diameter, making sure that customers will get the good quality mesh as per they want.
And we cut the edge line nicely with no bending edge wires, no burs, and edge wire cutting at the same wire.

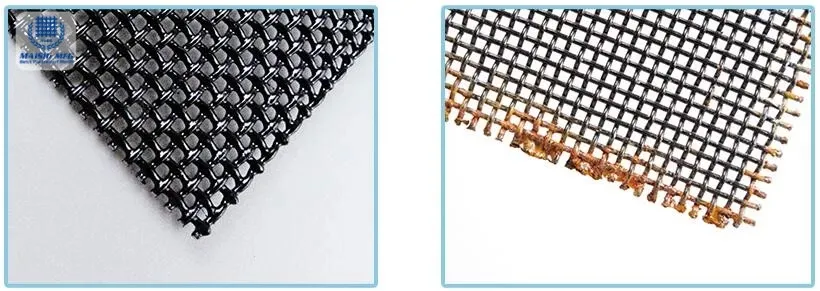

Powder
MAISHI use Akzo Nobel powder — the top quality powder in the world.
It has bright shiny color, and can keep the original color even after years of usage. It will not fade, peel or burst under the sunshine in 10 years.
Packaging

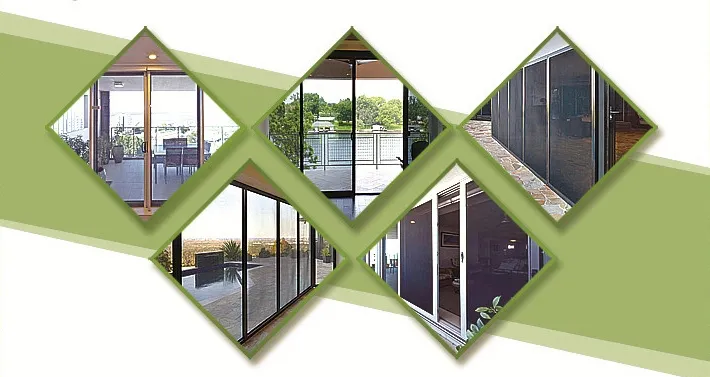

Product Usage
